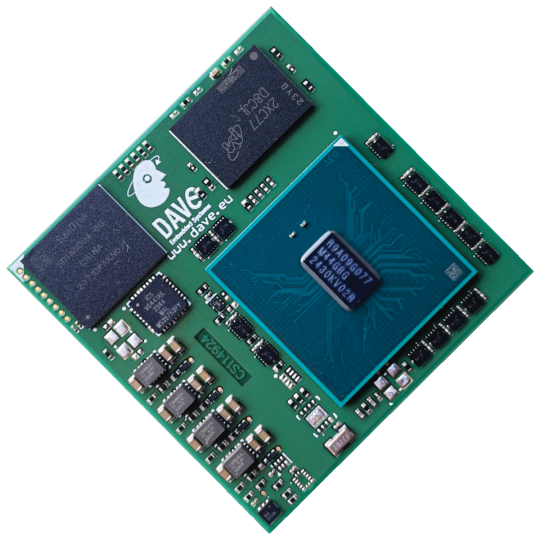

Renesas RZ/T2H - ZERO SOM

The ZERO SOM, developed by DAVE Embedded Systems, is a System On Module (SOM) featuring the Renesas RZ T2H application processor. This SOM is part of the Harsh Line portfolio from DAVE Embedded Systems, which ensures maximum performance and integration. With a minimum availability of 15 years, it meets the needs of reliable and durable industrial applications.

Featuring a complete suite of internal processing units and peripherals, the ZERO SOM includes up to 3 industrial MAC Ethernet ports, up to 9 motor control axes, and a safety management system, making it ideal for industrial, safe, and secure connected applications.

The ZERO SOM is integrated into ToloMEO, DAVE Embedded Systems' solution for Edge Data Orchestration and Industry 5.0. With ToloMEO, the ZERO SOM is natively connected to the cloud, enabling data collection and remote OTA updates. It also supports the integration of machine learning algorithms running on the internal ARM cores and PRU. Additionally, it manages edge activities within a Trust Zone Area for legally bound supply chain transaction management. Cybersecurity protection is ensured through VCE monitoring and security update applications. Finally, the Embedded Manager module supervises the software lifecycle and BSP design.

The ZERO SOM is specifically designed for safe and reliable industrial applications and is suitable for IEC 61508 compliance. With ToloMEO, the ZERO SOM is the ideal solution to design a fleet of edge devices compliant with standard regulations for security and data protection.

Key Features

Up to Quad core ARM Cortex-A55 MPCore @ 1.2 GHz
Dual Cortex-R52 @ 1.0 GHz for Real Time Safe compliant applications
Security subsystem for IoT Industry 4.0 and beyond
Up to 3 x 10/100/1000 Mbps ETHernet ports with TSN
Supports Ethercat, Ethernet/IP and PROFINET RT/IRT
Low latency motor control up to 9 axes
Integration of ToloMEO Embedded Assistant in IoT module, Machine Learning module, Trusted Area, Security module and Embedded Manager module
Industrial design for temperature range -40/85°C and minimum availability of 15 years
Standard OSM L form factor - 45x45mm

Datasheet

Technical Information

CPU	Renesas RZ/T2H up to Quad core ARM Cortex A55 MPCore @ 1.2GHz Dual ARM Cortex-R52 up to 1GHz
Memory	SDRAM : Up to 4GB LPDDR4, x32 data bus width eMMC : Bootable up to 64GB
Interfaces (full-spec models)	Up to 4 Ethernet Ports (3x GMAC with TSN) EtherCAT Slave controller Industrial Ethernet Switch with TSN PCIe: up to 2x PCIe 3.0 ports USB: 1x 2.0 OTG port SDIO: 1x SDIO/MMC Up to 9x axis motor control I/F Debug : JTAG IEEE 1149.1 Test Access Port Other: up to 3x I2C channels up to 4x SPI channels up to 2x CAN interface GPIOs with interrupt capabilities
Mechanical	Connectors: OSM Size L form factor - LGA footprint Size: 45.0 mm x 45.0 mm Temperature range: Commercial (0°C / +70°C) temperature range Automotive (-40°C / +125°C) temperature range Industrial (-40°C / +85°C) temperature range Storage conditions: -40/85°C temperature range Non condensing RH% 10-90%
Power Supply	Input : Single 3.3V, on-board voltage regulation
BSP	Bootloader : U-Boot, Secure Boot Available O.S. : Linux Embedded with Yocto Functional Safety-Compliant targeted according to IEC 61508
