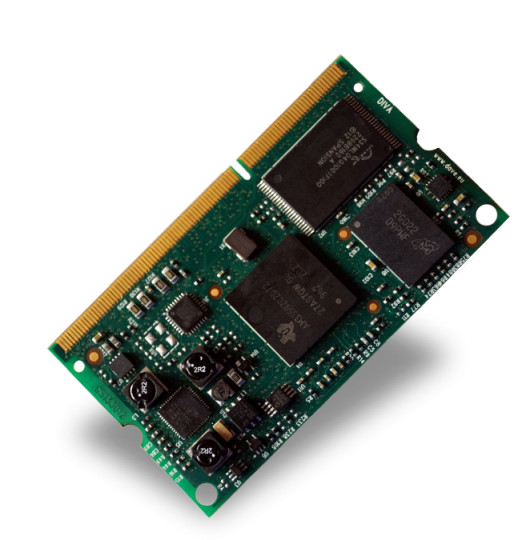

DIVA SOM

Processor: Texas Instruments "Sitara" AM335x

DIVA is a CPU module based on Texas Instruments "Sitara" AM335x Cortex-A8 application processor. It is built with SO-DIMM 204 pin form factor and it offers lots of graphics, processing, peripherals and industrial interface options, allowing customer to implement cost-effective designs.

The Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS) adds further flexibility and enables additional peripherals interfaces and real-time protocols such us EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink.

Main Features

  • Texas Instruments "Sitara" AM335x Cortex-A8 processors family
  • Lite Line - ARM Cortex-A8 architecture @ up to 1000 MHz
  • NEON Multimedia Coprocessor and PowerVR® SGX Graphics Engine
  • Dual Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS)
  • Crypto Hardware Accelerator (AES, SHA, PKA, RNG)
  • SO-DIMM 204-pin form factor
  • Rich interfaces set including Dual CAN and Ethernet

3D

Block Diagram

Evaluation kits

DIVA SOM Evaluation Kit € 899.00

The official evaluation kit for DIVA SOM. This solution includes a SOM and all necesary for the fast and easy evaluation

Show more

Case histories

IoT and Space applications: a success story
An IoT Case History: the X-Poles success story
Agricolture and embedded technologies: a simple GPU design
Embedded technology for IEC 61131 PLC device
TECHNOLOGY SUPPORT FOR LASER THERAPY DEVICES
EMBEDDED TECHNOLOGY INTEGRATED IN AN ECG DEVICE
