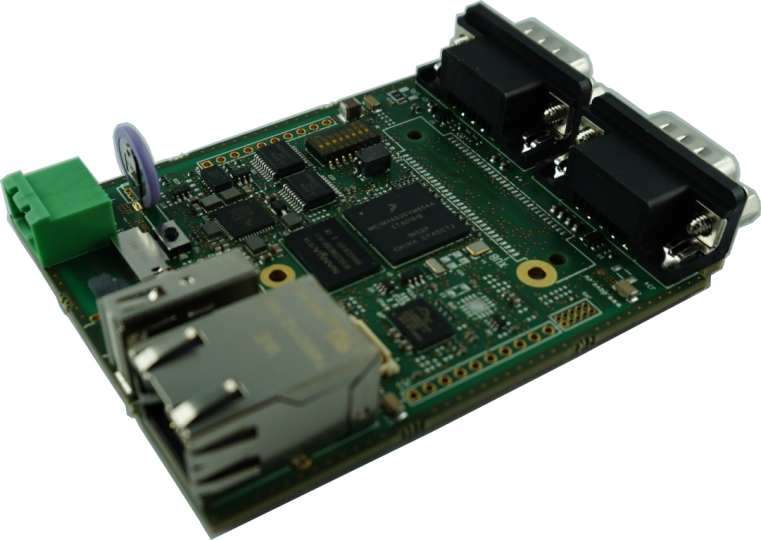

Processor: NXP/Freescale i.MX6 UL
Single Board Computer is a SUCCESS STORY where DAVE Embedded Systems' capabilities have created a complete solution for those customers who want to focus on their unique added value, without investing on deep technology such us embedded linux and HW design.
The SBC platform presented here provides a compact solution for any industry and can be easily interfaced with Plant Automation Control thanks to IEC-61131 SW language environment and/or other plug-ins like QT environment or multimedia GStreamer video applications.
DAVE Embedded Systems' Single Board Computers are the perfect off-the-shelf compact ARM solutions.
This hardware proposal by DAVE Embedded Systems is completed with SW solutions (SoftPLC, QT, RTOS) which permit to reduce overall system cost, and making SBCs ideally suited for deployment into a wide range of cost-sensitive and robust industrial applications..
The SBC Lynx hardware proposal is a ready-to-use solution designed for an industrial applications, in particural control and supervision, and can be easily interfaced with Plant Automation Control thanks to RTOS applications, QT environments and other plug-ins like IEC-61131 SW language environment. This permits to reduce overall system costs, making SBCs ideally suited for deployment into a wide range of cost-sensitive and robust industrial applications.
Visit this page for product highlights.
SBC Lynx provides the following features:
CPU: Freescale iMX6 UL / DDR3 RAM @16bit up to 512MB / SLG NAND - size on request / NOR FLASH SPI - size on request
USB Host and Device
SERIAL: 2xRS232 on Serial Multi Protocol / 2xRS485 on Serial Multi Protocol / 2x CAN with PHY on Serial Multi Protocol
ETHERNET: 1x10/100Mbps / 1x EMAC interface on WIDE™ interface
DISPLAY: 24bit RGB/LCD interface on WIDE TM interface
CONTROL: Expansions connectors for relais, buttons, PM, etc.
CONNECTIVITY: Bluetooth and Wi-Fi available on add-on
DIMENSIONS: 67,585mm - Standard DIN (modules)
PSU: 12-24 VDC
Designed for industries: HMis, Controllers, Gateways, Dataloggers, Low Power Applications
Visit this page for block diagram and features summary.
Yes, we have our Longevity Program based on Silicon Vendors' Longevity Program. For SBC Lynx see this page.
In this video, we explain how to check the longevity of DAVE Embedded Systems' products: DAVE Embedded Systems / HOW TO - How to check product Longevity
Visit this page to download SBC Lynx manual.
To download the technical documentation you will need to register on the DAVE Embedded Systems Wiki site. You can find the video tutorial with the guided procedure by clicking here: How to register to the DAVE Embedded Systems website.
Visit this page for SBC Lynx block diagram.
Visit this page for SBC Lynx 3D model.
On this page you you will find all the technical documentation available for SBC Lynx.
For further information please contact helpdesk@dave.eu.
On this page you can find the whole marketing documentation available for SBC Lynx.
For further information please contact helpdesk@dave.eu.
SBC Lynx part number is identified by the digit-code table that you can find on this page.
Yes, we have our Longevity Program based on Silicon Vendors' Longevity Program. For SBC Lynx see this page.
In this video, we explain how to check the longevity of DAVE Embedded Systems' products: DAVE Embedded Systems / HOW TO - How to check product Longevity
If you want to request support to our technical team please fill this form. After the submission, a ticket will be assigned. Our technicians will look after your request and, typically, they will respond you via email within 24 hours.
DAVE Embedded Systems provides a very efficient technical support. In this video we show you all the ways you can get help from us: How to contact DAVE technical support.
Visit this page for DAVE Embedded Systems' Return Material Authorization form.
Your SBC Lynx product, like every other DAVE Embedded Systems' development kits, will be identified by two codes: the Part Number identification code (P/N) and the Serial Number identification code (S/N).
These codes are printed on a label sticked to the box containing the kit and they are required to complete the registration process of the kit.
Visit this page to download the guide that describes the SBC Lynx Embedded Linux Kit (XUELK) and serves as a quick guide for start working with the development kit.
Visit this page to discover all the components of the SBC Lynx kit.
Visit this page for futher information on how to connect the system (a picture also shows you all the available connections) and run the first boot process.
SBC Lynx is built upon NXP iMX6UL processor. This page summarizes all the booting options available.
S11 is the hardware reset button for SBC Lynx.
On this page you will find an image that shows you where the reset button is located.
Visit this page for SBC Lynx products highlights.
SBC Lynx is conceived to allow the customer to plug in some additional boards to the mainboard. This board provides more interfaces to the SBC, augment expansion pin availability or add the possibility to use a custom board suitable for every needs.
On these pages you can find various examples of such add-ons:
Yes. On this page you can find an example on C code displaying the classic Hello World! message on the target serial console. This example shows how to use the arm cross-compiler using the environment configured for this purpose.
On this page we show you how to set up SBC Lynx with Qt Creator.
On SBC Lynx are available the following interfaces and connectors:
On SBC Lynx are available the following software interfaces.
SBC Lynx is based on an industrial product: for more information, please contact sales@dave.eu.
SBC Lynx can be used either as a standalone board or as a part of a bigger system. From the point of view of overall system grounding, requirements may differ significantly depending on the actual usage. For this reason, SBC Lynx implements a flexible grounding scheme that can be adjusted to the majority of application environments.
Visit this page for further information.
Visit this page for the mechanical specifications of the SBC Lynx board such as layout, and 3D drawing.
You can download SBC Lynx brochure by clicking here.
If you’re interested in SBC Lynx contact us to get a quotation.
The CPU of SBC Lynx is based on Freescale i.MX 6UltraLite application processor of our technology partner NXP. A high performance, ultra-efficient processor family featuring an advanced implementation of a single Arm Cortex-A7 core, which operates at speeds up to 696 MHz.
