SBC SDV25

Processor: Expressif/ESP32

All-in-one Embedded Single Board Computer

Single Board Computer is a SUCCESS STORY where DAVE Embedded Systems' capabilities have created a complete solution for those customers who want to focus on their unique added value, without investing on deep technology such us embedded linux and HW design.

A Single Board Computer (SBC) is a complete embedded system built on a single circuit board that contains fully industrial functional components, like microprocessor(s), memory, input/output (I/O) and other features required of a typical embedded computer. DAVE Embedded Systems has designed a new range of Embedded Single Board Computers extremely small and simple, versatile and easy to use.

EASY HARDWARE:

CPU: based on Expressif ESP32-C3-WROOM-02

READY SOFTWARE:

Software Platforms: ESP-IDF
Industrial Applications: ToloMEO Edge

Datasheet

CPU	Expressif ESP32 Single-core 32-bit RISC-V CPU, up to 160 MHz 400 KiB SRAM, 384 KiB ROM, and 8 KiB RTC SRAM
Interfaces	Wi-Fi 2.4 GHz (IEEE 802.11b/g/n) Bluetooth 5 (LE) 4G LTE Cat.1 with integrated antenna (optional) USB: debug connector on 3x2x2.54mm pin strip connector (optional adapter with micro-USB connector) Serial Bus: RS232, RS485, CAN or I2C on Phoenix 5.08mm connector
Mechanical	Plastic box Size (WxLxH): 18x100x80mm 1 module DIN Bar Temperature range: Industrial (-40°C / +85°C)
Power Supply	7-28VDC Power Reset button Power led 1x programmable led 1x programmable button
Software features	Watchdog: HW and SW watchdog for board block Power Management: low power management, power outage and reboot detection Data retention: NTP USB: software debug Physical UI: hw and sw buttons Cybersecurity: OS hardening, user/password/cert management, penetration test on request Production: product traceability & commissioning

Informationsanfrage

Willkommen auf dem Portal zum Einreichen des technischen Informationsformulars von DAVE Embedded Systems!
Bitte füllen Sie die Felder unten aus. Das Support-Team kümmert sich in maximal 24 Stunden um Sie!

Vorname *

Familienname, Nachname *

Name der Firma *

Email *

Produktfamilie *

Nachricht *

Ich bin damit einverstanden, den monatlichen Newsletter von DAVE Embedded Systems zu abonnieren.

Ich lese und akzeptiere - Privacy Policy and Cookie Policy *

Cart

SBC SDV25

All-in-one Embedded Single Board Computer

EASY HARDWARE:

READY SOFTWARE:

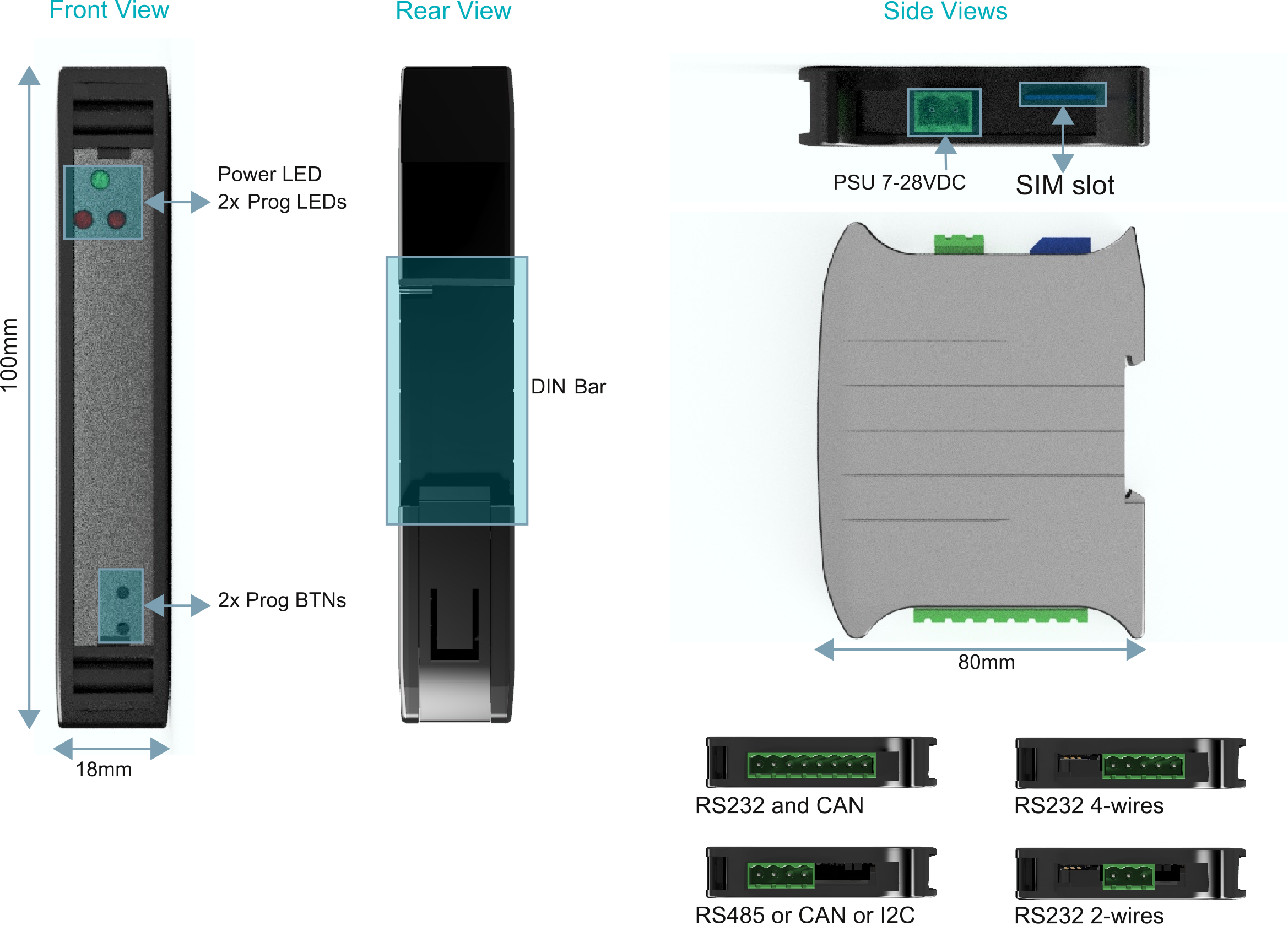

Block Diagram
